Reciprocating Cycle Linear Motor DC12V/ DC24V Gear Adjustable Telescopic Motor DIY Motor With Speed Controller Stroke 3-15CM

Reciprocating Telescopic Machine

Send speed-regulating power supply, adjustable speed

Voltage: 12V/24V optional

Speed: 45/90/120 (revolution/minute) optional

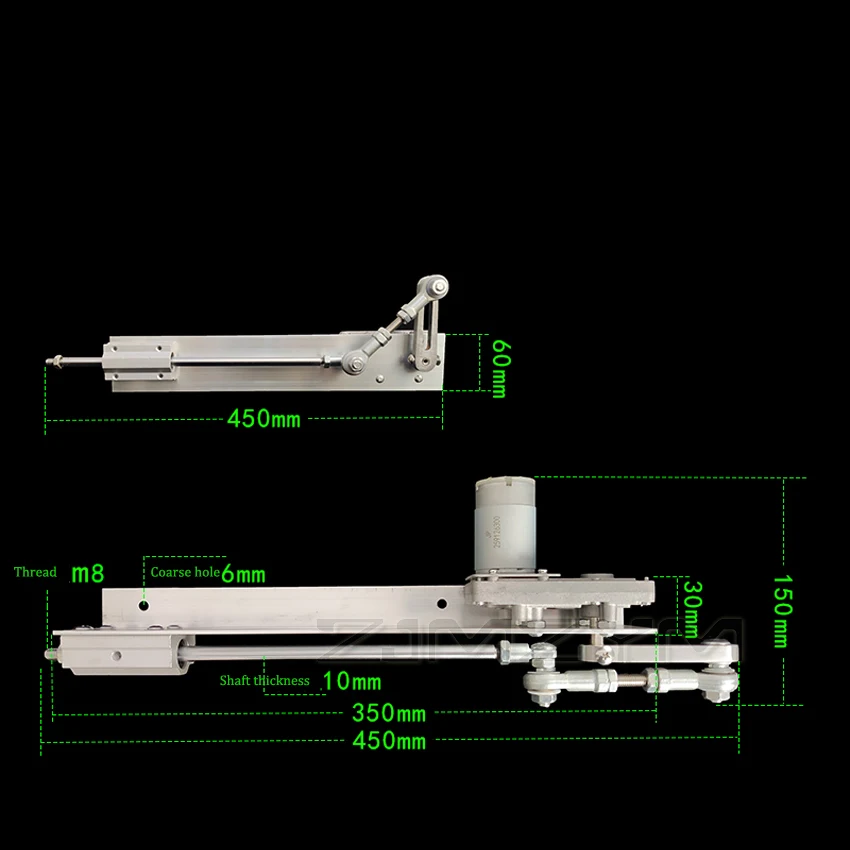

Stroke: 3-15cm

1. Speed issues

The speed of the order option is the highest speed per minute, 1 revolution is 1 revolution, and it stretches once

For example: 90 rpm is the fastest 90 laps per minute, and the governor can only reduce the speed.

2. Thrust problem

The smaller the stroke, the greater the thrust. Conversely, the larger the stroke, the lower the thrust. The reference data is given below.

12V stroke 2CM, thrust about 15 kg

12V stroke 4CM, thrust about 7.5 kg

12V stroke is 6CM, thrust is about 5kg

12V stroke 8CM, thrust is about 4 kg

12V stroke 10CM, thrust about 3 kg

12V stroke 12CM, thrust is about 2.5 kg

12V stroke 15CM, thrust about 1.5 kg

24V stroke 2CM, thrust about 25 kg

24V stroke 4CM, thrust about 10kg

24V stroke 6CM, thrust about 7 kg

24V stroke 8CM, thrust about 5 kg

24V stroke 10CM, thrust is about 4 kg

24V stroke 12CM, thrust about 3 kg

24V stroke 15CM, thrust is about 2 kg

Note:The data is for reference only, please refer to the specific use environment.
